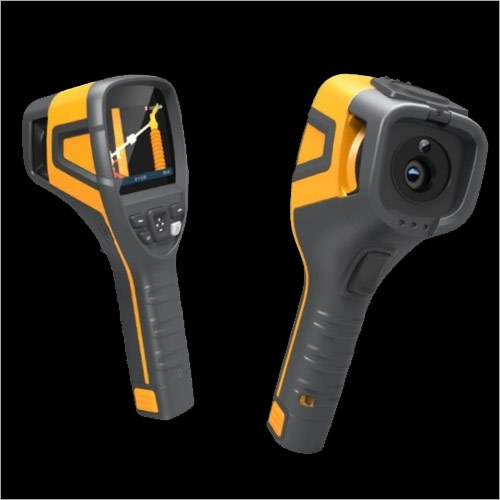

Infrared Thermal Imaging Cameras
Infrared Thermal Imaging Cameras
Product Code : Bseries
Brand Name : GUIDE
Price And Quantity
- Minimum Order Quantity
- 1 Unit/Units
- Price
- 158000-260000 INR
Product Description
GUIDE B series is an efficient, budget-friendly andcompletely equipped infrared thermal imaging camera. This robust and very handyhigh-tech system thanks to its intuitively learnable handling and user-friendlysingle hand operation, which makes it an ideal tool for troubleshootingelectrical installations, mechanical components, buildings, process equipment,HVAC/R equipment and more.
| Model | B160V | B256V | B320V |
| IR Imaging Performance | |||
| IR resolution | 160×120 | 256×192 | 320×240 |
| Detector type | VOx/17μm/7.5~14μm | ||
| Frame rate | 25Hz/9Hz | ||
| NETD | ≤50mk | ||
| Focal Length | 5mm/F1.2 | 7mm/F1.1 | 7mm/F1.1 |
| Field of view(FOV) | 30°×23° | 34.5°×26.5° | 42.5°×32.5° |
| Spatial Resolution(IFOV) | 3.30mrad | 2.36mrad | 2.33mrad |
| Min focus distance | 1m | 1m | 1m |
| Focus | Foucus-free | ||
| Visible Camera | |||
| Resolution | 640×480, Automatic | ||
| Image Presentation | |||
| Display | 3.5" highlight LCD screen, 320×240 | ||
| Image modes | IR image，Visible image，MIF，PIP | ||
| Digital zoom | ×2，×4 | ||
| Color palettes | 6:White Hot, Iron Red, Hot Iron, Arctic, Rainbow 1, Rainbow 2 | ||
| Measurement | |||
| Temperature range | -20℃~350℃ | ||
| Accuracy | ±2℃ or ±2%, whichever is greater | ||
| ( target temp ≥0℃, ambient temp is 15℃ ~ 30℃ ) | |||
| Spotmeter | Center spot | ||
| Auto tracking | Area Tmax/Tmin tracking | ||
| Alarm | Area Tmax/Tmin alarms | ||
| Storage | |||
| Storage medium | Removable SD card（16G） | ||
| Image format | JPG with temp info | ||
| Video Streaming | transferred to via USB | ||
| Connections & Communications | |||
| Interface | Micro USB（for real-time image/ video transmission） | ||
| WIFI | Yes（for data transfer and camera control） | ||
| Power System | |||
| Battery | Rechargeable Li-ion battery, ≥4h, | ||
| Automatic shut-down and sleeping mode | |||
| Environmental Parameters | |||
| Operating temp range | -10℃~50℃ | ||
| Storage temp range | -40℃~70℃ | ||
| Encapsulation | IP43，1m drop | ||
| Weight | 740g（batterry included） | ||
| Size | 258mm×98mm×90mm | ||
| Standard Accessories | Li-ion battery, Power supply adapter (5V/2A), Adapter plug, Wrist strap, USB cable,Quick Start Guide, Data Download Card, SD card(16GB) | ||
| Optional Accessories | Li-ion Battery,Camera carring pouch,Battery charger | ||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -40℃~70℃ | ||
| Encapsulation | IP54，2-meter drop test | ||
| Certification | CE/ROHS/FCC | ||
| Weight | about 350g | ||
| Size | 194mm*61.5mm*76mm | ||
| Standard Accessories | Wrist Strap, Quick start Guide, Charger ＋ Adapter, TYPE-C USB cable, Data Download Card, 16G TF Card | ||
